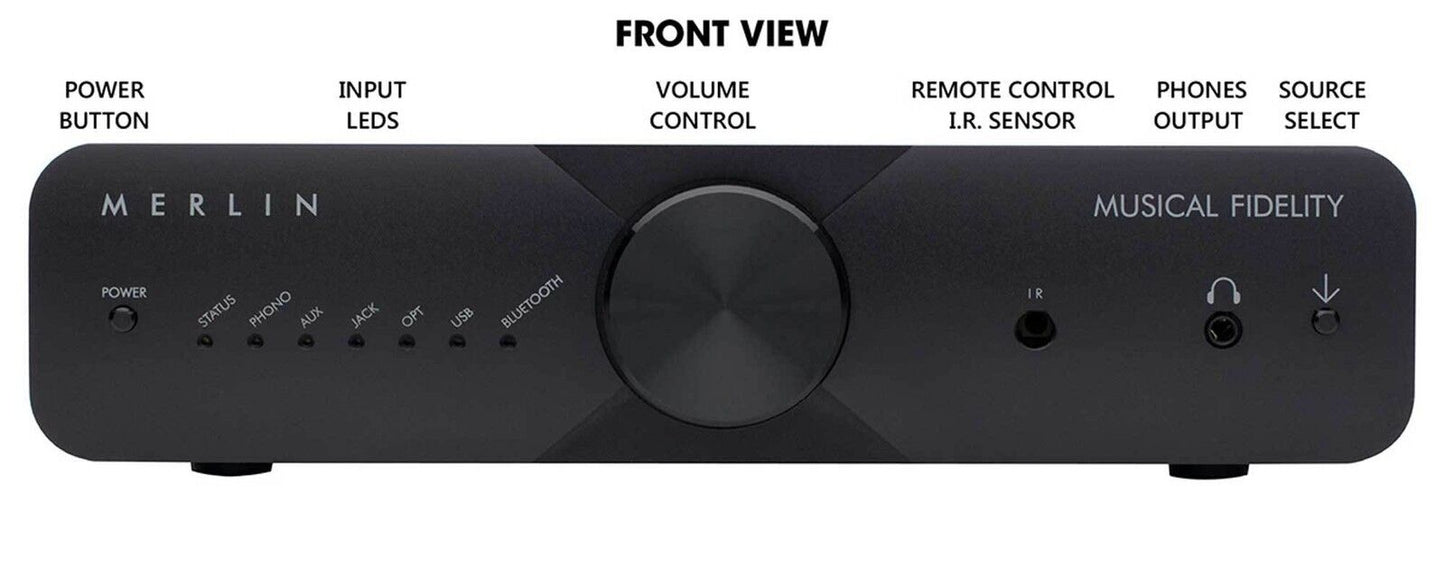

Musical Fidelity Merlin Bluetooth Digital Analogue Mini Hi Fi System Silver

Musical Fidelity Merlin Bluetooth Digital Analogue Mini Hi Fi System Silver

£284.99 GBP
£284.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Where to start with this stylish and incredible sounding system from Musical Fidelity? First you may like to read some of the reviews and awards this system has received. Then take a look at our pricing compared to the market price.

Below are a few of the outstanding features of this system, with more specifications below.


  • 50 watts per channel amplifier
  • Inputs: Phono, USB, Bluetooth apX, line in (Digital or Analog)
  • Very High Quality Headphone Amplifier with separate volume control
  • Configurable Output (Digital or Analog, Fixed or Variable)
  • Merlin is a sublime sounding system. It plays music with uncanny realism yet comes in a small, discreet package
  • Matching turntable available, but NOT INCLUDED in this package



Features:
Integrated Headphone Amp based on Musical Fidelity’s Class B V90 HPA model
Two 24bit, 192Khz Digital to Analog Converters
Twin high grade amplifier modules
In-built Analog to Digital Converter
50 watts per channel Speakers with diffraction multiplier system
Amp volume control
Remote Control
Bluetooth


System includes:
Merlin 1 Digital Amplifier/Bluetooth apt-X Streamer
Merlin 1 Speakers
Remote Control with Battery (CR2025)
Bluetooth Aerial
Monster Cable 12-14 Gauge Speaker Cables
IEC C5 (cloverleaf) Type Mains Lead (3 Amp Cord/Plug)


Amplifier Specifications:
Power Output: 50W maximum peak per channel into 4 Ohms (17dBW)
Maximum Output Voltate: 20V Peak
THD+N: <0.1% typical, 20 Hx to 20 kHz
Signal/Noise Ratio: >86 dB 'A'-weighted
Input impedance: 50 k Ohms
Frequency Response: +0, -0.2 dB, 10 Hz to 20 kHz


Amp Dimensions:
220mm (8 2/3") Width, 55mm (2") Height (including feet), 240mm (9 1/2") Depth (front to back, including terminals)


Amp Weight:
1.9kg (4 1/4lbs) Unit only, unboxed
2.5kg (5 2/3lbs) In shipping carton


Inputs:
1 Pair RCA Connectors:
300 mV to 2.2 Vrms max "AUX" input (Hi-Fi line level compatible)
3 mV nominal as PHONO (RIAA) input suitable for 1-6mV cartridges
1 3.5mm (1/8") stereo jack/optical suitable headphone outputs: 150 mV to 1 Vrms mas as jack socket
Up to 24 bit/96 kHz PCM S/PDIF as optical input
USB-B "micro" socket, USB adaptive 44.1/48 kHz/16 bit


Outputs:
1 3.5mm (1/8") stereo jack/optical
Line output (fixed or variable, switch selected) 3.5 Vrms max
Optical output (music level always fixed) 44.1 Khz to 96 kHz
Headphone 3.5mm (1/8") stereo jack up to 2.8 Vrms


Power Requirement:
Mains voltages: 90-250 VAC 50-60Hz Universal Worldwide Supply
Consumption: <0.25 Watts standby (Orange LED lit), 50 Watts maximum (Blue LED lit, full power output)


Speakers Specifications:
Output: 2 pairs 4mm banana plugs
Power Handling: 15-75W
Enclosure Type: One Way Reflex
Impedance: 4 Ohms
